(NLF4 / NLF5) Reel Straightener Feeder

undefined
+
  • undefined
  • Details
  • Parameter
  • Video
    • Commodity name: (NLF4 / NLF5) Reel Straightener Feeder
    • Commodity ID: 1118540865115672576

    Application:

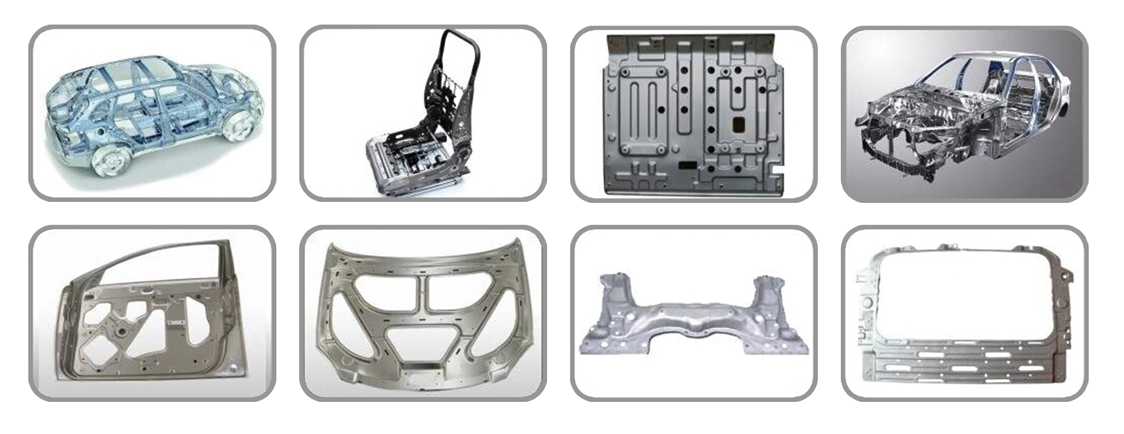

    1.Suit for High tensile steel products like automotive parts.

    2.Can be matched to manipulator or other peripheral equipment.

    3.Special designs and manufacturing are welcome according to customer demand.



  • NLF4 Specifications

    Spec. (↓) / Model(→) NLF4-400 NLF4-500 NLF4-600 NLF4-700 NLF4-800 NLF4-1000 NLF4-1800
    Material width (mm) 90 ~ 400 90 ~ 500 90 ~ 600 90 ~ 700 90 ~ 800 90 ~ 1000 90 ~ 1800
    Material thickness (mm) 1.0 ~ 8.0
    Thickness range
    under max.
    width
    (mm)    		 W 400 500 600 700 800 1000 1800
    T 1.0 ~ 6.5 1.0 ~ 6.0 1.0 ~ 5.0 1.0 ~ 4.0 1.0 ~ 3.5 1.0 ~ 3.0 1.0 ~ 2.0
    Max. width
    under max.
    thickness
    (mm)    		 T 8
    W 200
    Max. coil weight
    (kg)    		 5000 7000 10000 15000
    Uncoiler motor
    (HP)    		 3 5 7.5 10
    Servo motor
    (KW)    		 AC 7.5 AC 11 AC 15
    Coil inner
    diameter
    (mm)    		 480 ~ 520 Ø 508
    Ø 610
    Coil outer
    diameter
    (mm)    		 1500
    Max. feed
    speed
    (M/min)    		 15
    Max. pneumatic SPM 50 SPM
    Feed accuracy
    (mm)    		 ± 0.20 (Die needs pilot pin)
    Straighten roller
    (mm)    		 Ø 96 x 7、Upper 4 / Lower 3 ( Upper 4 / Lower 3 )
    Feed roller (mm) Ø 144 x 4 ( 2Sets )
    Standard material
    line height
    (mm)    		 1100 ± 100
    Uncoiler expand way Hydraulic operation
    Uncoiler power Master
    Coil sensor Photo sensor
    Material SPCC
    Material treatment N/A
    Clean air pressure 5 kg/cm²
    Coil car Option



    NLF4 Straighten Capability Chart

    Model(↓) / Width(↘) / Thickness(→) 2 2.5 3 3.5 4 5 6 6.5 7 8
    NLF4-400 400 300 200
    NLF4-500 500 400 300 200
    NLF4-600 600 500 400 300 200
    NLF4-700 700 600 500 400 300 200
    NLF4-800 800 700 600 500 400 300 200
    NLF4-1000 1000 800 700 600 500 400 300 200
    NLF4-1800 1800 1520 1000 800 700 600 500 400 300 200

    Remark:

    1.Above straighten capability is based on SPCC (tension strength 28-40kgf/mm²)(JIS G3141).

    2.For SUS304-1/4H ( tension-strength 52kgf/mm2, hardness below HRB90°)(JIS G4305),

    the straighten capability will be half of above table.



    NLF5 Specifications

    Spec. (↓) / Model(→) NLF5-400 NLF5-500 NLF5-600 NLF5-700 NLF5-800 NLF5-1000 NLF5-1800
    Material width (mm) 90 ~ 400 90 ~ 500 90 ~ 600 90 ~ 700 90 ~ 800 90 ~ 1000 90 ~ 1800
    Material thickness (mm) 1.0 ~ 10.0
    Thickness range
    under max.
    width
    (mm)    		 W 400 500 600 700 800 1000 1800
    T 1.0 ~ 8.0 1.0 ~ 7.0 1.0 ~ 6.5 1.0 ~ 6.0 1.0 ~ 5.0 1.0 ~ 4.0 1.0 ~ 2.5
    Max. width
    under max.
    thickness
    (mm)    		 T 10
    W 200
    Max. coil weight
    (kg)    		 5000 7000 10000 15000
    Uncoiler motor
    (HP)    		 3 5 7.5 10
    Servo motor
    (KW)    		 AC11~22
    Coil inner
    diameter
    (mm)    		 480 ~ 520 Ø 508
    Ø 610
    Coil outer
    diameter
    (mm)    		 1500
    Max. feed
    speed
    (M/min)    		 12
    Max. pneumatic SPM 50 SPM
    Feed accuracy
    (mm)    		 ± 0.20 ( Locating pins required for mold )
    Straighten roller
    (mm)    		 Ø 120 x 7、Upper 4 / Lower 3 ( Upper 4 / Lower 3 )
    Feed roller (mm) Ø 180 x 4 ( 2Sets )
    Standard material
    line height
    (mm)    		 1100 ± 100
    Uncoiler expand way Hydraulic
    Uncoiler power Active
    Coil sensor Photoelectric induction
    Material SPCC
    Material treatment NO
    Clean air pressure 5 kg/cm²
    Coil car Option



    NLF5 Straighten Capability Chart

    Model(↓) / Width(↘) / Thickness(→) 2.5 3 4 5 6 6.5 7 8 9 10
    NLF5-400 400 300 200
    NLF5-500 500 400 300 200
    NLF5-600 600 500 400 300 200
    NLF5-700 700 600 500 400 300 200
    NLF5-800 800 700 600 500 400 300 200
    NLF5-1000 1000 800 700 600 500 400 300 200
    NLF5-1800 1800 1600 1200 800 700 600 500 400 300 200

    Remark:

    1.Above straighten capability is based on SPCC (tension strength 28-40kgf/mm²)(JIS G3141).

    2.For SUS304-1/4H ( tension-strength 52kgf/mm2, hardness below HRB90°)(JIS G4305),

    the straighten capability will be half of above table.
